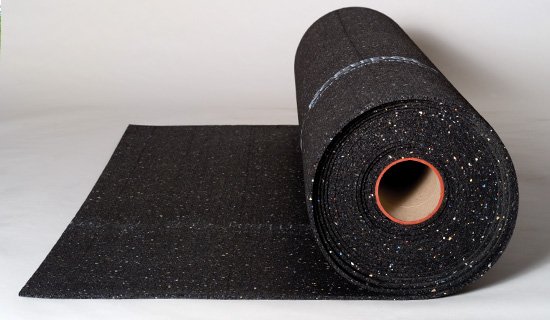

QT Sound Insulation
SKU: FM-QTSCU 4012
DONWLOAD SPECS
DIMENSIONS
• 12mm(.47”); 48” x 15 LF
• Sheet weight: 2lb/ft2
• Standard Tolerances: Width: +½” – ¼”; Length: +1% -0”; Thickness: ±0.4mm
60 SQ.FT Per Roll (4′ x 15′)
• Tile flooring, QTscu 4012, 8” concrete slab –
IIC 55 | HIIC 58 (7006029)
• Wood flooring, QTscu 4012, 6” concrete slab –
STC 54 | IIC 57 | HIIC 65 (R8325.05)
• Ceramic tile flooring, QTscu 4012, 3/4” gypsum concrete,
TJI joists, RC, 2 layers of gypsum board
STC 60 | IIC 54 | HIIC 55 (P4252.08)QTSCU 4012 SPEC SHEET
QT Sound Insulation is a high-quality sound control underlayment manufactured
in the USA. QT is backed by hundreds of acoustical tests and a team of
acoustical engineers to help you provide the right acoustic solution.
